Suzuki Jimny Rear Bar & Wheel Carrier Rear Wheel Carrier 1998 - 2018 ADR Compliant
ADR COMPLIANT SUZUKI JIMNY REAR BAR & WHEEL CARRIER
Genuine 4x4's ADR Compliant Suzuki Jimny rear bar & wheel carriers are available for all Jimnies from 1998 - 2018.
GENUINE 4x4 ADR COMPLIANT SUZUKI JIMNY REAR BAR & WHEEL CARRIER HAS A MAXIMUM TOWBAR CAPACITY 1300kg & MAXIMUM TOWBALL DOWNLOAD 130kg. REFER TO OWNERS MANUAL FOR MAXIMUM PERMISSABLE TOWING LOADS.
NOTE: Vehicle Manufacturer’s declared safe towing capacity, if lower than the tested one, must be used! Refer to the Vehicle Owner’s Manual.
A stylish and strong looking rear bar that offers protection and great departure angles. Able to carry up to 32" tyres without any modification (the white jimny has 32" tyres on it, 32/11.5/r15 -27 offset rim) or 33"+ then you need to extend the bolts a bit to fit plus chop off the work/camp light tab (the matte black jimny has 33" tyres on it, 33/12.5/r15 -27 offset rim). Thanks to the pivoting door system the arm that carries the tyre is a swing away arm that swings open with the door when opened. So there is no need to open the arm then the rear door as you do with many other rear wheel carrying bars. When using the pivoting door system you take the spare wheel off the back door and onto the arm (after a while of offroading jimnies back doors tend to crack at the hinges due to the weight of the tyre on the back door) and saving your rear door hinges from cracking.

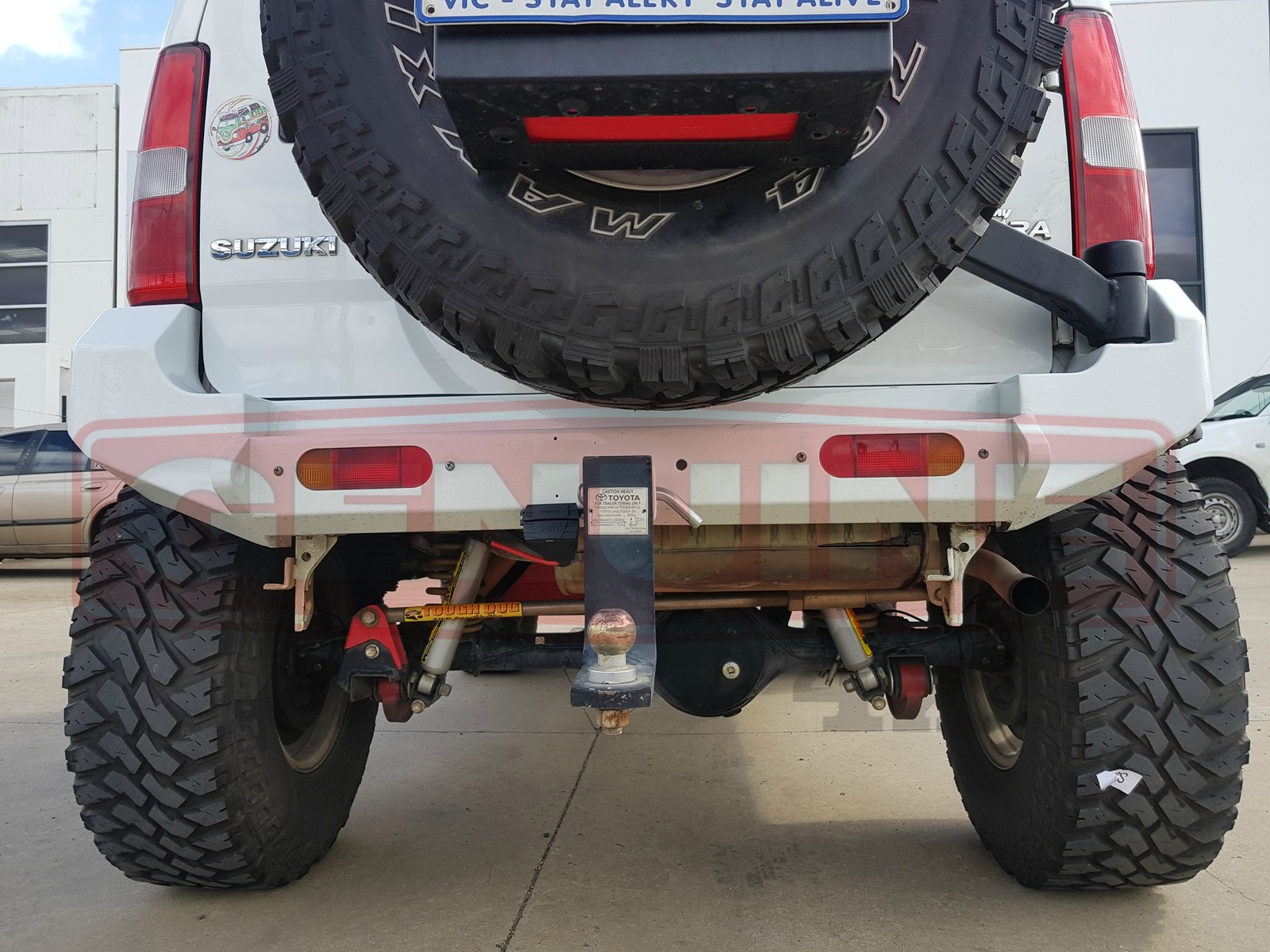

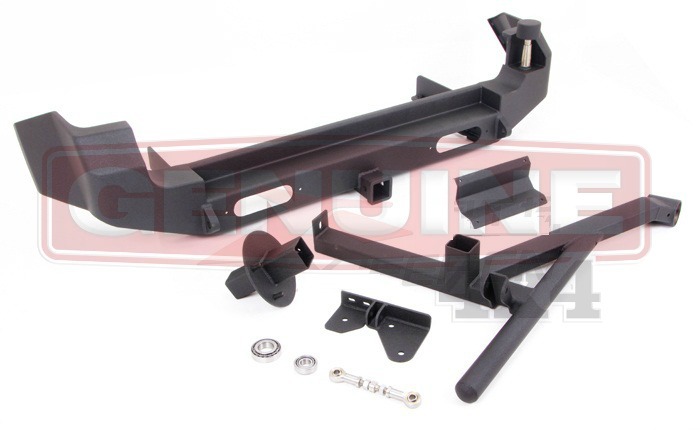

The Genuine 4x4 suzuki jimny rear bar & wheel carrier comes in a black hammertone finish and can be color coded for an extra cost (please note color coding is about a 96% color match) All up the bar weighs 40kg, it is a straight bolt on system that requires no welding or drilling. The rear lights that are in your stock rear bumper bar are relocated to this bar. The bar has 2 eyelet recovery points (25mm) that you can attach 4.7T shackles and a standard 50mm x 50mm tow hitch attachment that is ADR COMPLIANT (please note the 4.7T shackles and tow hitch do not come with the rear bar but can be added for an extra cost). The brackets to the chassis are 5mm thick and the rear bar is 3mm thick steel.

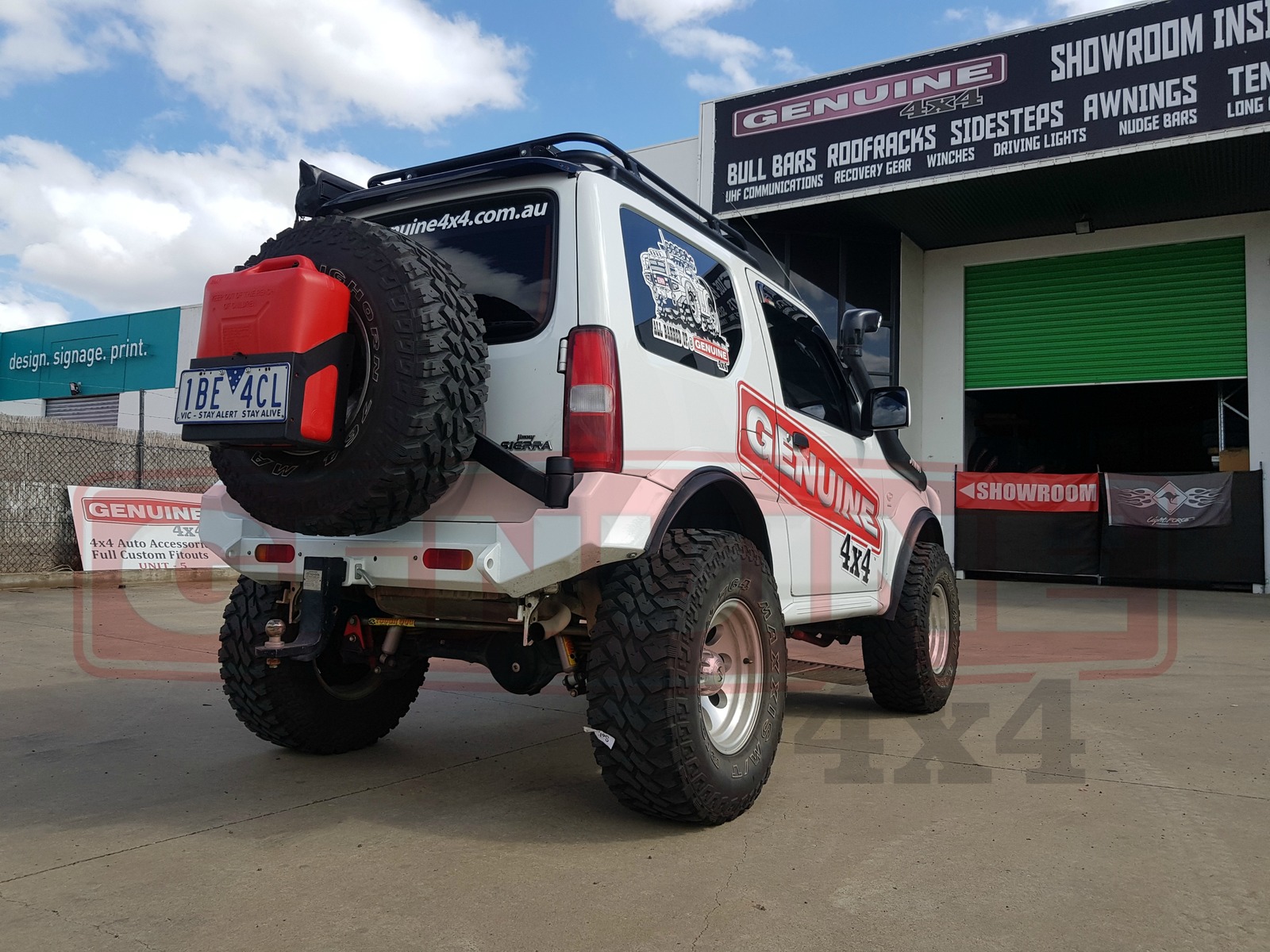

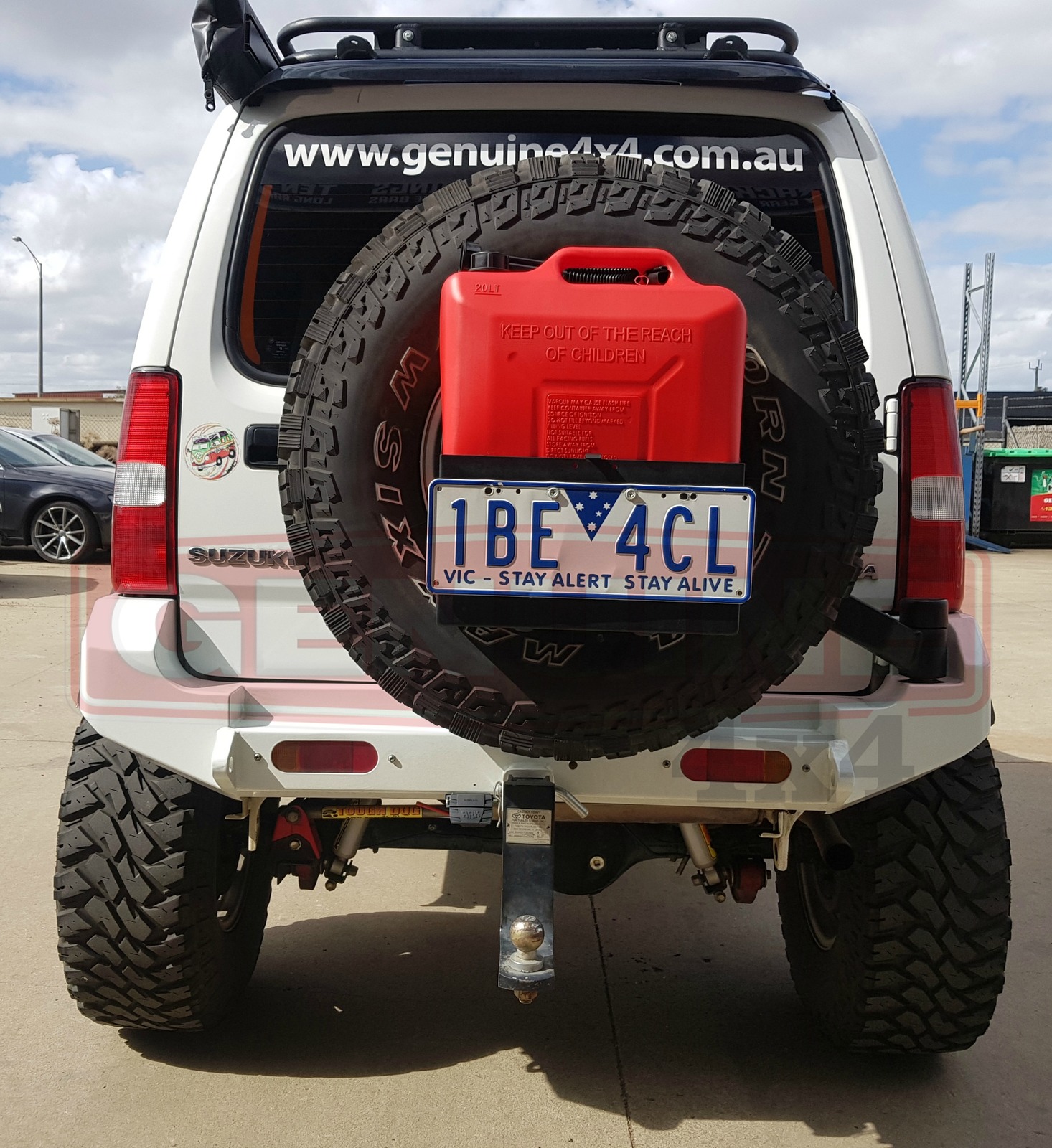

The Genuine 4x4 rear bar & wheel carrier comes with a bracket so you can mount your number plate on and slides into the tyre holder so it keeps the tow hitch free to use. An optional extra is the single jerry can holder ($199) that has been bolted onto the number plate bracket (the bracket is meant for a number plate, to bolt the single jerry can holder onto it as we have done then you must reinforce this bracket to be able to cope with the extra weight) and slides into where the spare wheel is.

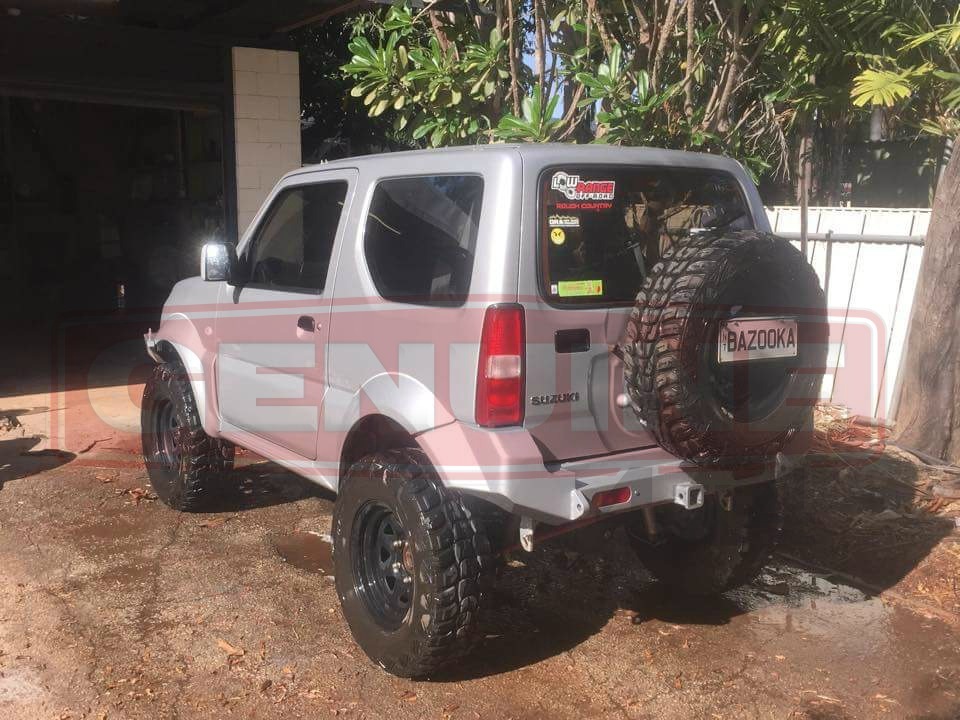

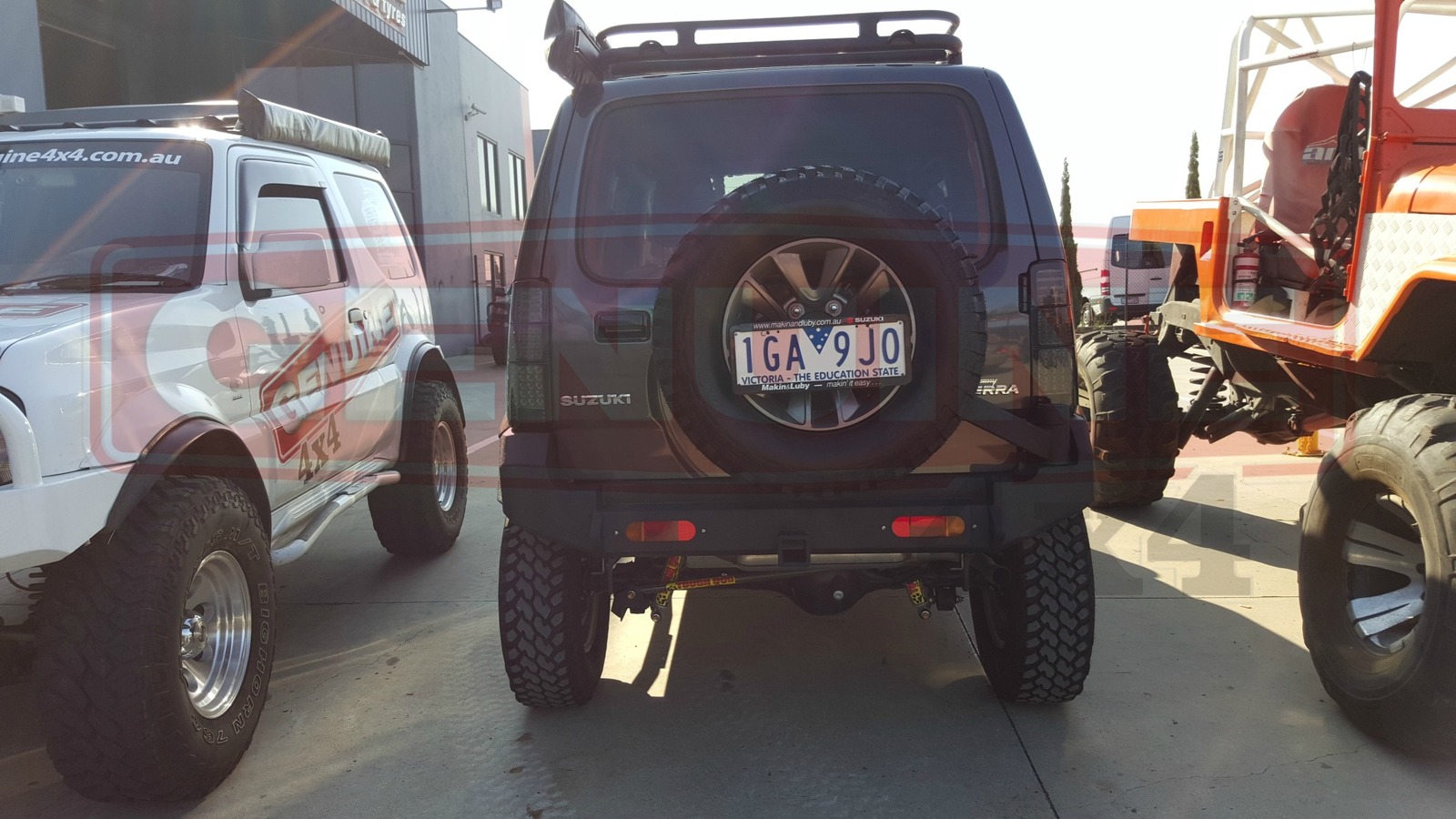

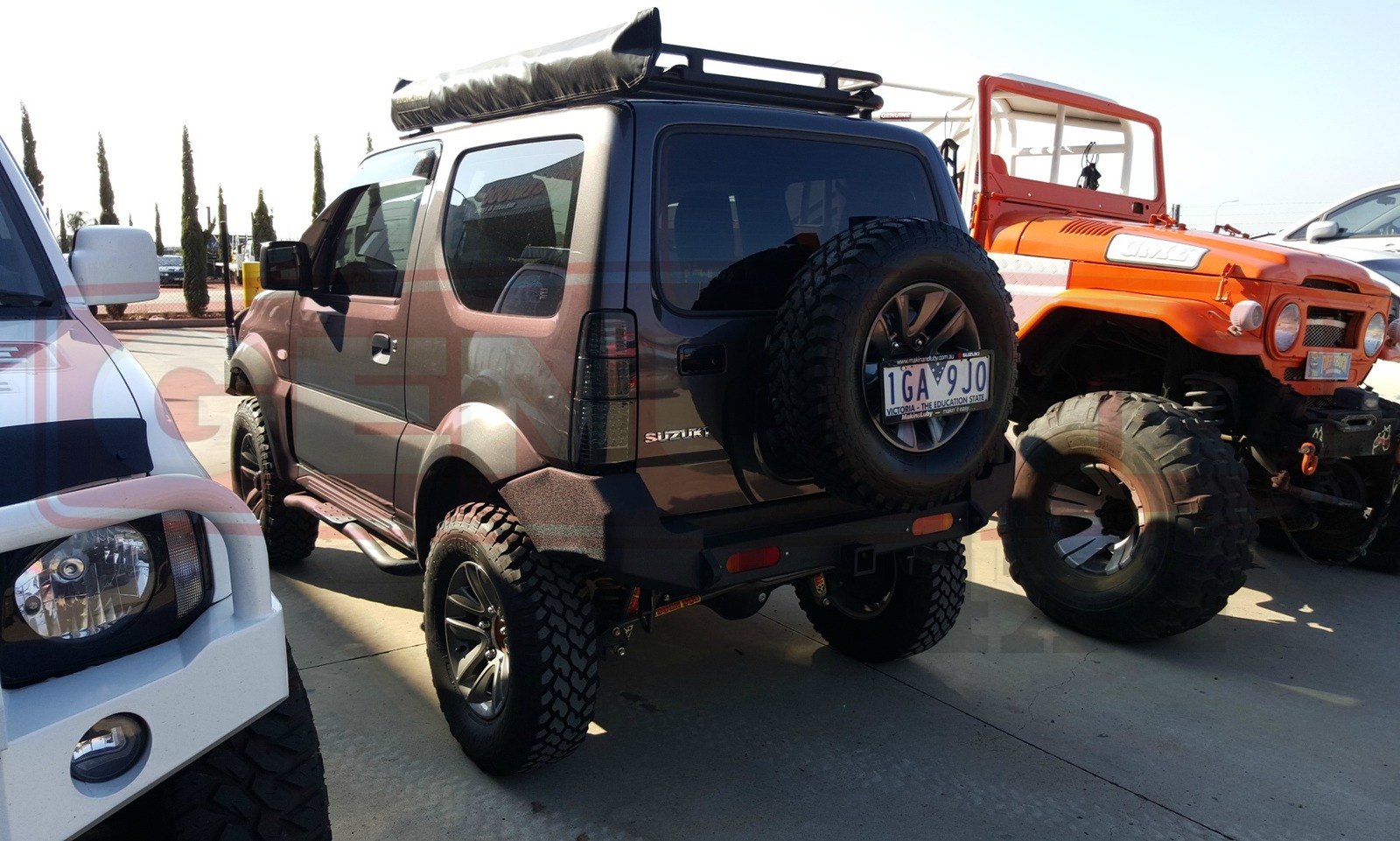

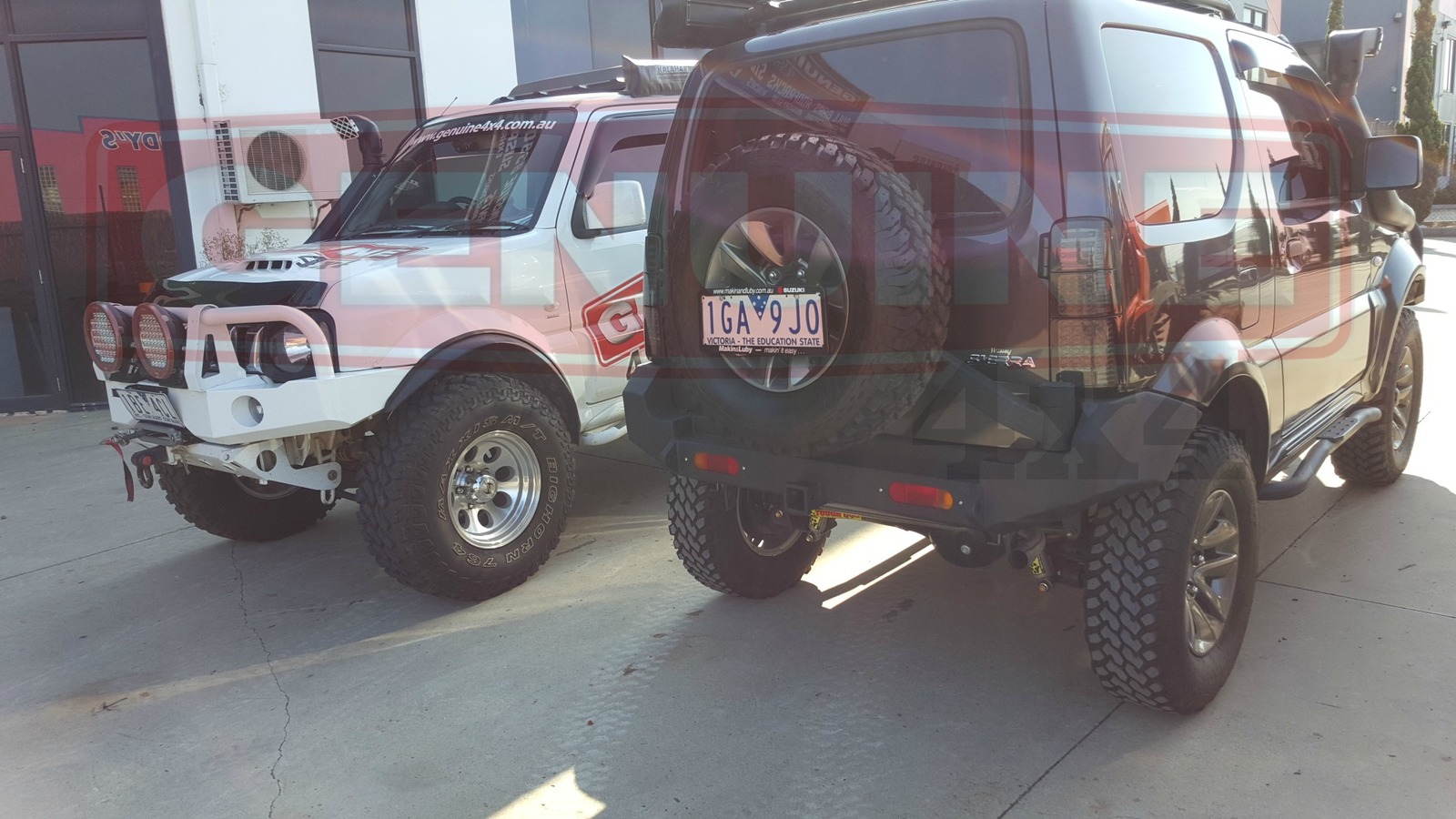

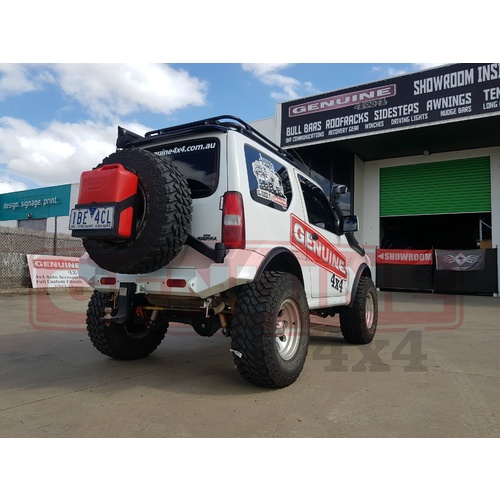

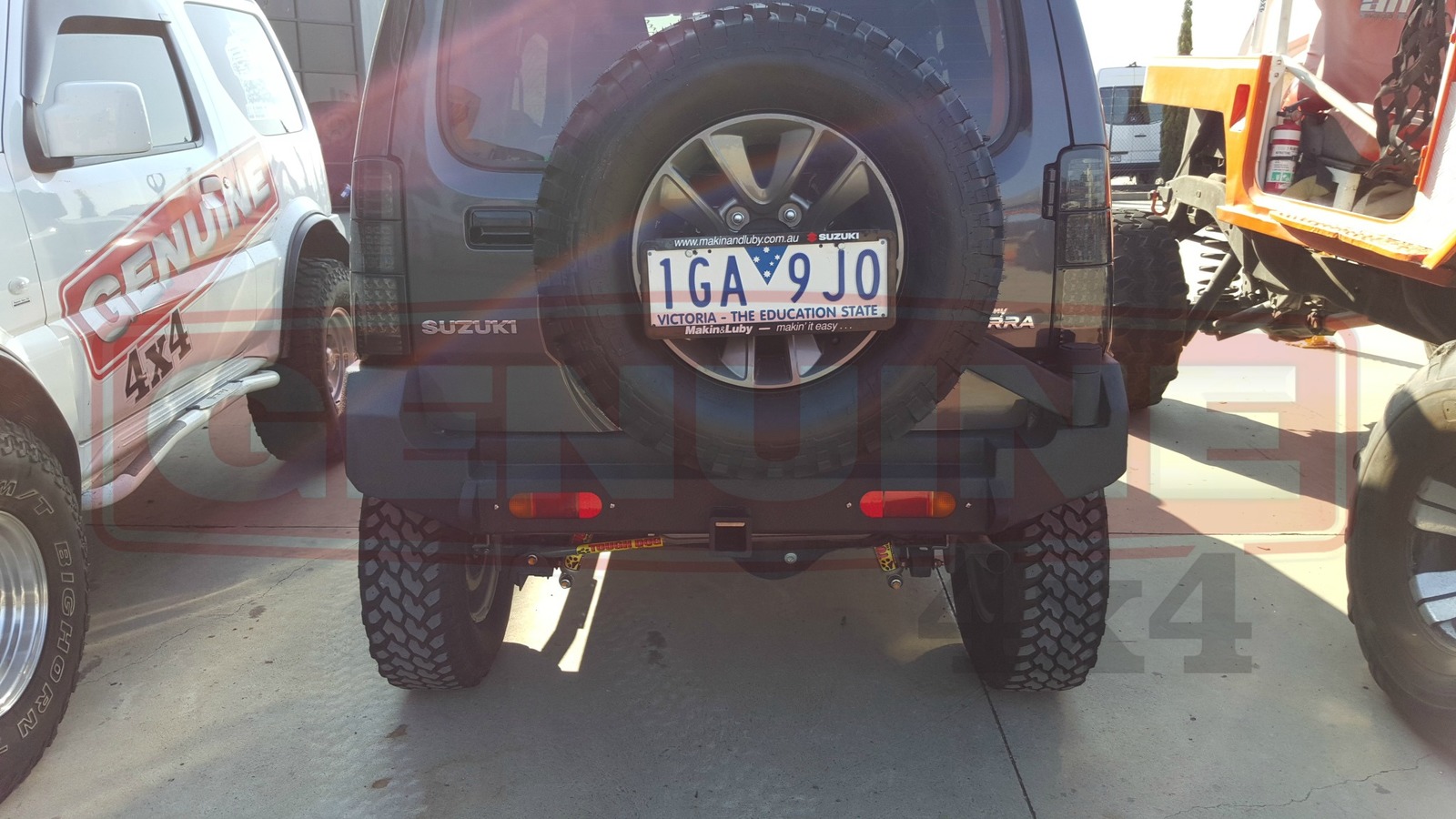

In the pictures the gun metal grey jimny is a 2015 model, the white Jimny is a 2013 model and the matte black is a 1999 model.
Genuine 4x4's suzuki jimny rear bar & wheel carrier. Freight is available Australia wide. If ordering at the same time as the rear bar we can supply 3.2T shackles for $6 each and a tow hitch receiver with a 4.7T shackle in it for $39.
If you have any questions at all just call and we are more than happy to answer them.
FITTING IS AVAILABLE
Please contact us for a fitting price. We fit everything we have available. If you would like to make a package deal or have an item you want fitted at the same time then we can work out a fitting package to suit your needs.
PICK UP IS WELCOME
Please ring before picking up to ensure product is in stock and available at this warehouse.
Unit 4/79-81 Rebecca drive
Ravenhall 3023 Victoria
Monday - Friday : 9am - 5pm (please note friday from 12:30pm-2pm we are closed)
Saturday : 9am-1pm
Items are despatched within 24hrs of payment clearing.
1 year limited warranty.
